| 主要技術參數： |
|
|
航空標志球（航空警示球）直徑 |
ф=600mm |
|
球體顏色 |
可以制作各種色彩艷麗的外觀全白色、全橙色、全紅色、橙白雙色、橙紅雙色 |
|
球體材料 |
為工程增強塑料航空警示球與高壓線電纜的線夾為鑄鋁件，緊固件采用不銹鋼 |
|
球重量 |
15kg | |
| |
|
產品結構

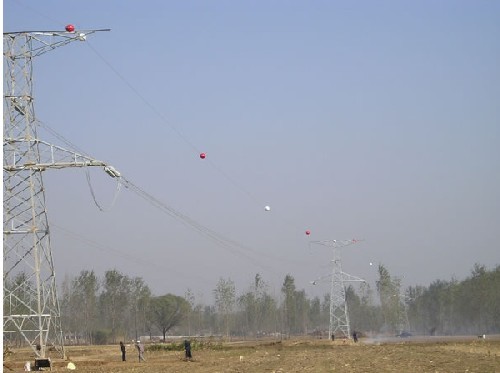

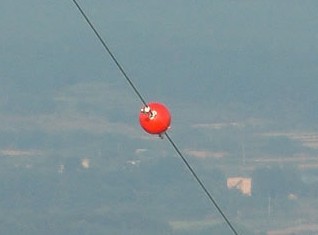

1、標志球（航空警示球）安裝在架空塔的防雷地線的鋼纜上，每個標志球的間距，不能超出30米，等間設置。
2、標志球（航空警示球）有白、橙兩種顏色，應相間設置。
3、涉及多條電線、電纜等場合，標志球（航空警示球）應設在不低于所標志的最高的架空線高度處。 |
| 此產品主要銷往東南亞及歐美國家： |
|
|
| 出口木箱包裝： |
|
|
| |
|

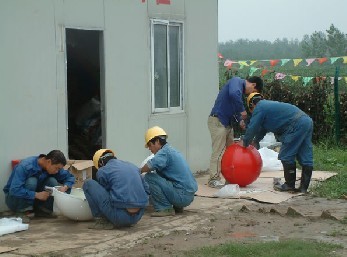

航空警示球安裝說明書（英文） |
|
Allerting Ball Installation Guide |
|
|
|
|
| Installing Procedure |
| 1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of protecting bars extending 200-300mm beyond the surface of the ball, as shown in Figure 1. |
|
|
|
Figure 1 |
|
上半球 upper hemisphere
電纜線cables
線夾cable clamp
不銹鋼螺栓stainless steel bolt
護線條cable protecting bars
下半球lower hemisphere |
| 2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them, as shown in Figure 2. |
|
|
|
Figure 2 |
|
下半球 lower hemisphere
塑料線 plastic wire
線夾cable clamp |
| 3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position . |
|
|
| 鋼碼模 module code |
| 4.Insert stainless steel bolts(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last, as shown in Figure 4. |
|
|
